Frequent Itemset Mining (FIM)

Prof. Dr. Tim Weber
tim.weber@th-deg.de

Deggendorf Institute of Technology

Introduction

also called Market Basket Analysis

Frequent itemset mining helps in discovering associations and correlations among items in large datasets. These associations can then be used for tasks like:

  • Association Rule Mining (e.g., “If a customer buys bread, they are likely to buy butter”)

  • Recommendation systems

  • Inventory management

  • Cross-selling strategies

Key Concepts

Itemset

  • a collection of one or more items ({bread, butter})

Support

  • the frequency (often expressed as percentage) with which an itemset appears in the data set

    • if {bread, butter} appears in \(30\) out of \(100\) transactions, its support is \(30\%\)

Frequent itemset

  • an itemset whose support is greater than or equal to a predefined, minimum threshhold

    • if the minimum support is \(25\%\), then {bread, butter} is a frequent itemset

Transaction database

  • a collection of transactions, where each transaction is a set of items
Transaction ID Items Purchased
T1 milk, bread, butter
T2 bread, butter
T3 milk, bread
T4 milk, butter, eggs
T5 bread, butter, jam

Simple example

What products are used?

Transaction ID Items Purchased
T1 milk, bread, butter
T2 bread, butter
T3 milk, bread
T4 milk, butter, eggs
T5 bread, butter, jam

milk, bread, butter, eggs, jam

Quick support count example

  • What itemsets are present?
  • What is the support for each itemset?
  • In which transaction do the itemsets appear?
Itemset Support Count Transaction
{bread} 4 T1, T2, T3, T5
{milk} 3 T1, T3, T4
{butter} 4 T1, T2, T4, T5
{milk, bread} 2 T1, T3
{bread, butter} 3 T1, T2, T5
{milk, butter] 2 T1, T4
{milk, bread, butter} 1 T1

Apriori Algorithm

The Apriori algorithm finds frequent itemsets in a dataset by building larger sets from smaller ones, using the principle that all subsets of a frequent itemset must also be frequent.

(Michael Hahsler 2005)

Transaction data

Transaction ID Items Purchased
T1 milk, bread, butter
T2 bread, butter
T3 milk, bread
T4 milk, butter, eggs
T5 bread, butter, jam

Support Threshold: 2 (itemset must appear two times to be considered frequent)

Step 1: Find Frequent 1-Itemsets (L1)

1-Itemset Support Count
milk 3 (T1, T3, T4)
bread 4 (T1, T2, T3, T5)
butter 4 (T1, T2, T4, T5)
eggs 1 (T4)
jam 1 (T5)

frequent itemsets (L1): milk, bread, butter

Step 2: Generate Candidate 2-Itemsets (C2)

  • Generate all combinations of L1:

    • {milk, bread}
    • {milk, butter}
    • {bread, butter}

  • Count the support

2-Itemset Support Count
{milk,bread} 2 (T1, T3)
{milk, butter} 2 (T1, T4)
{bread, butter} 3 (T1, T2, T5)

frequent itemsets (L1): {milk, bread}, {milk, butter}, {bread, butter}

Generate Candidate 3-Itemsets (C3)

  • Generate combinations of L2 that share a common subset

    • only possible 3-itemset: {milk, bread, butter}

  • Check the support:

3-Itemset Support Count
{milk, bread, butter} 1 (T1)
  • Termination: no 3-itemset meet the support requirement, algorithm stopped

Final Frequent Itemsets

  • L1: {milk}, {bread}, {butter}
  • L2: {milk,bread}, {milk,butter}, {bread,butter}

Association Rule Mining (Apriori)

Association rule mining finds patterns or relationships between items in large datasets, such as products often bought together, focussing on those that meet a minimum confidence threshold (\(70\%\) in this example).

Key Definitions

  • Support: How frequently an itemset appears in the data
  • Confidence: How often items in \(Y\) appear in transactions that contain \(X\) in the rule \(X \rightarrow Y\) \[Confidence(X \rightarrow Y) = \frac{Support(X \cup Y)}{Support(X)}\]
  • Lift: Measures whether \(X\) and \(Y\) appear together more often than expected if they were independent \[Lift(X \rightarrow Y) = \frac{Confidence(X \rightarrow Y)}{Support(Y)}\]

Frequent Itemsets (repetition)

  • L1: {milk}, {bread}, {butter}
  • L2: {milk,bread}, {milk,butter}, {bread,butter}

Rules

From Rule L2 Support of L2 L1 Support of L1 Confidence
{milk,bread} \(milk \rightarrow bread\) {milk,bread} 2 milk 3 \(Confidence = \frac{2}{3} \approx 66.7\%\)
\(bread \rightarrow milk\) {milk,bread} 2 bread 4 \(Confidence = \frac{2}{4} \approx 50\%\)
{milk,butter} \(milk \rightarrow butter\) {milk,butter} 2 milk 3 \(Confidence = \frac{2}{3} \approx 66.7\%\)
\(butter \rightarrow milk\) {milk,butter} 2 butter 4 \(Confidence = \frac{2}{4} \approx 50\%\)
{bread,butter} \(bread \rightarrow butter\) {bread,butter} 3 bread 4 \(Confidence = \frac{3}{4} \approx 75\%\)
\(butter \rightarrow bread\) {bread,butter} 3 butter 4 \(Confidence = \frac{3}{4} \approx 75\%\)

Rule interpretation

Rule Confidence Interpretation
\(bread \rightarrow butter\) \(75\%\) \(75\%\) of people who buy bread also buy butter
\(butter \rightarrow bread\) \(75\%\) \(75\%\) of people who buy butter also buy bread

Lift (optional)

\[Lift = \frac{Confidence (bread \rightarrow butter)}{Support(butter)} = \frac{0.75}{0.8} = 0.9375 < 1\] \(Lift < 1\) means bread and butter co-occur less than expected if they were independent (only slightly).

\[Lift = \frac{Confidence (butter \rightarrow bread)}{Support(bread)} = \frac{0.75}{0.8} = 0.9375 < 1\]

\(Lift < 1\) means butter and bread co-occur less than expected if they were independent (only slightly).

Apriori in Code

Transactions raw

[[1]]
[1] "milk"   "bread"  "butter"

[[2]]
[1] "bread"  "butter"

[[3]]
[1] "milk"  "bread"

[[4]]
[1] "milk"   "butter" "eggs"

[[5]]
[1] "bread"  "butter" "jam"

Transaction class

    items
[1] {bread, butter, milk}
[2] {bread, butter}
[3] {bread, milk}
[4] {butter, eggs, milk}
[5] {bread, butter, jam}

Apply apriori

# Mine frequent itemsets
frequent_items <- apriori(transactions,
                          parameter = list(supp = 0.4, target = "frequent itemsets"))
Apriori

Parameter specification:
 confidence minval smax arem  aval originalSupport maxtime support minlen
         NA    0.1    1 none FALSE            TRUE       5     0.4      1
 maxlen            target  ext
     10 frequent itemsets TRUE

Algorithmic control:
 filter tree heap memopt load sort verbose
    0.1 TRUE TRUE  FALSE TRUE    2    TRUE

Absolute minimum support count: 2

set item appearances ...[0 item(s)] done [0.00s].
set transactions ...[5 item(s), 5 transaction(s)] done [0.00s].
sorting and recoding items ... [3 item(s)] done [0.00s].
creating transaction tree ... done [0.00s].
checking subsets of size 1 2 3 done [0.00s].
sorting transactions ... done [0.00s].
writing ... [6 set(s)] done [0.00s].
creating S4 object  ... done [0.00s].
inspect(frequent_items)
    items           support count
[1] {milk}          0.6     3
[2] {bread}         0.8     4
[3] {butter}        0.8     4
[4] {bread, milk}   0.4     2
[5] {butter, milk}  0.4     2
[6] {bread, butter} 0.6     3

generate rules

Apriori

Parameter specification:
 confidence minval smax arem  aval originalSupport maxtime support minlen
        0.7    0.1    1 none FALSE            TRUE       5     0.4      1
 maxlen target  ext
     10  rules TRUE

Algorithmic control:
 filter tree heap memopt load sort verbose
    0.1 TRUE TRUE  FALSE TRUE    2    TRUE

Absolute minimum support count: 2

set item appearances ...[0 item(s)] done [0.00s].
set transactions ...[5 item(s), 5 transaction(s)] done [0.00s].
sorting and recoding items ... [3 item(s)] done [0.00s].
creating transaction tree ... done [0.00s].
checking subsets of size 1 2 3 done [0.00s].
writing ... [4 rule(s)] done [0.00s].
creating S4 object  ... done [0.00s].
    lhs         rhs      support confidence coverage lift   count
[1] {}       => {bread}  0.8     0.80       1.0      1.0000 4
[2] {}       => {butter} 0.8     0.80       1.0      1.0000 4
[3] {bread}  => {butter} 0.6     0.75       0.8      0.9375 3
[4] {butter} => {bread}  0.6     0.75       0.8      0.9375 3

Rule Visualization

    lhs         rhs      support confidence coverage lift   count
[1] {}       => {bread}  0.8     0.80       1.0      1.0000 4
[2] {}       => {butter} 0.8     0.80       1.0      1.0000 4
[3] {bread}  => {butter} 0.6     0.75       0.8      0.9375 3
[4] {butter} => {bread}  0.6     0.75       0.8      0.9375 3

(Hahsler 2017)

Classroom example

Let’s go shopping!
  • Build toy supermarket
  • students go shopping
  • get transaction list and compute algorithm

Application

Data-Driven Production Methodology for Optimizing Tool Inventory in Small and Medium-Sized Enterprise

Master Thesis: Van Thuy Cuc Dang

Supervisor: Prof. Dr. Tim Weber

Cooperation Partner: SK Technology

Data Workflow

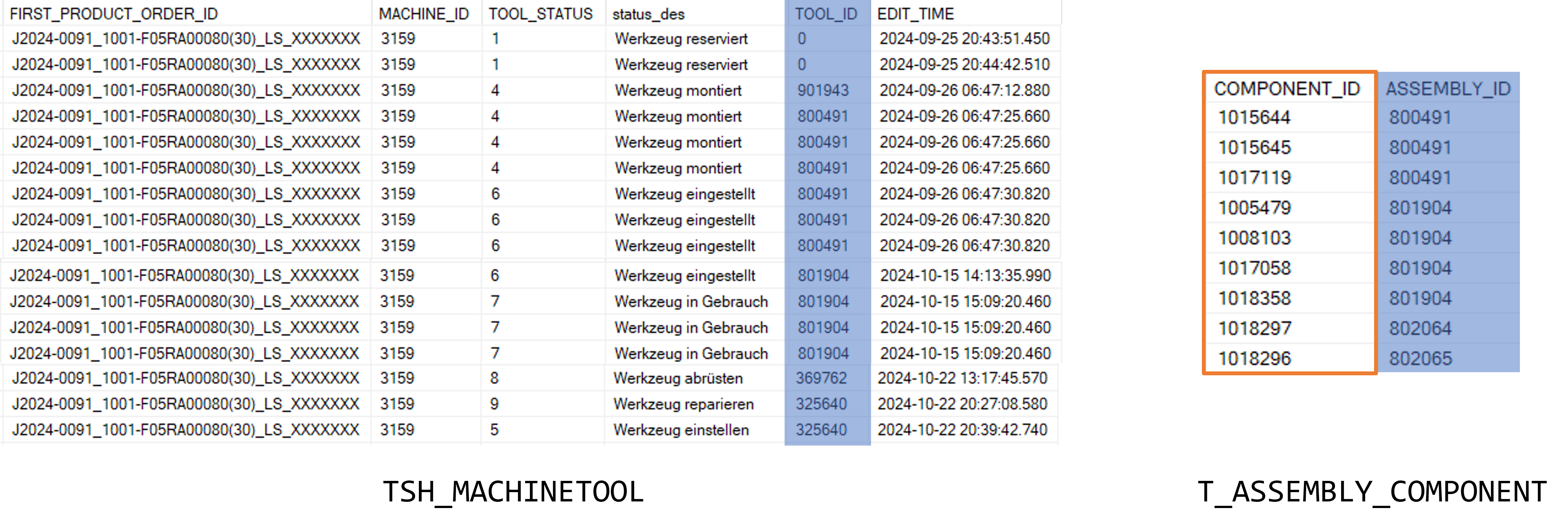

Raw data

Transactions

Tool Network (Apriori)

Tool Network (Eclat)

Discussion

  • FIM used to find the tool network (dependencies)
  • Needed: Tool removal metric
  • Future: Predict Tool and cross link to product

Summary FIM

Aspect Apriori Eclat FP-Growth
Core Strategy Candidate generation + pruning TID-list intersections Prefix-tree with recursive mining
Data Format Horizontal Vertical (TID sets) Tree-based (compressed horizontal)
Candidate Gen Yes No No
Speed Slower on large/dense data Faster than Apriori Fastest on large/dense data
Memory Use High Moderate Low
DB Scans Multiple Fewer Typically 2
Rule Support Yes Yes Yes (with post-processing)
Best For Small/medium sparse datasets Medium-size frequent data Large and dense datasets

References

Hahsler, Michael. 2017. “arulesViz: Interactive Visualization of Association Rules with r.” The R Journal 9 (2): 163. https://doi.org/10.32614/rj-2017-047.
Michael Hahsler, Kurt Hornik, Bettina Grün. 2005. “<B>arules</b>- a Computational Environment for Mining Association Rules and Frequent Item Sets.” Journal of Statistical Software 14 (15). https://doi.org/10.18637/jss.v014.i15.
