k - Nearest Neighbours

Prof. Dr. Tim Weber
tim.weber@th-deg.de

Deggendorf Institute of Technology

Uses

  1. Classification:
    • Medical diagnosis
    • Image recognition
    • Document classification
  2. Regression:
    • Stock price prediction
    • Weather forecasting
  3. Recommendation Systems:
    • Product recommendations
    • Movie recommendations
  1. Anomaly Detection:
    • Fraud detection
    • Network security
  2. Pattern Recognition:
    • Speech recognition
    • Handwriting recognition
  3. Data Imputation:
    • Filling missing values

The idea

example at work

  • training data
cluster_data <- data.frame(
  feature_01 = c(1,1,2.5,3.5,5,5.5,7,
                 3,4,5,5,6,8.5,8.5
                 ),
  feature_02 = c(5.5,4,1,3,2.5,3.5,1.5,
                 9,6,9,6,7.5,5,3.5
                 ),
  cluster = c(rep("triangle",7),
              rep("circle",7)
              ) |> as.factor()
)
  • new data
new_data <- data.frame(
  feature_01 = 5,
  feature_02 = 5,
  cluster = "new data" |> as.factor()
)

raw data plot

clustering: code

out_k3 <- class::knn(cluster_data[,1:2],
                     new_data[,1:2],
                     cluster_data$cluster,
                     k = 3)
out_k3
[1] circle
Levels: circle triangle
out_k5 <- class::knn(cluster_data[,1:2],
                     new_data[,1:2],
                     cluster_data$cluster,
                     k = 5)
out_k5
[1] triangle
Levels: circle triangle

cluster plot

cluster: classroom

We need:

  • two clusters

  • one new data point

How did you decide to which cluster the data point belongs?

Euclidean distance

the math

\(n\)-dimensions:

\(d(p,q) = \sqrt{(p_1-q_1)^2+(p_2-q_2)^2+\ldots+(p_n-q_n)^2}\)

\(n=2\)-dimensions:

\(d(p,q)= \sqrt{(p_1-q_1)^2+(p_2-q_2)^2}\)

general:

\(d(p,q) = \lVert{p-q}\rVert\)

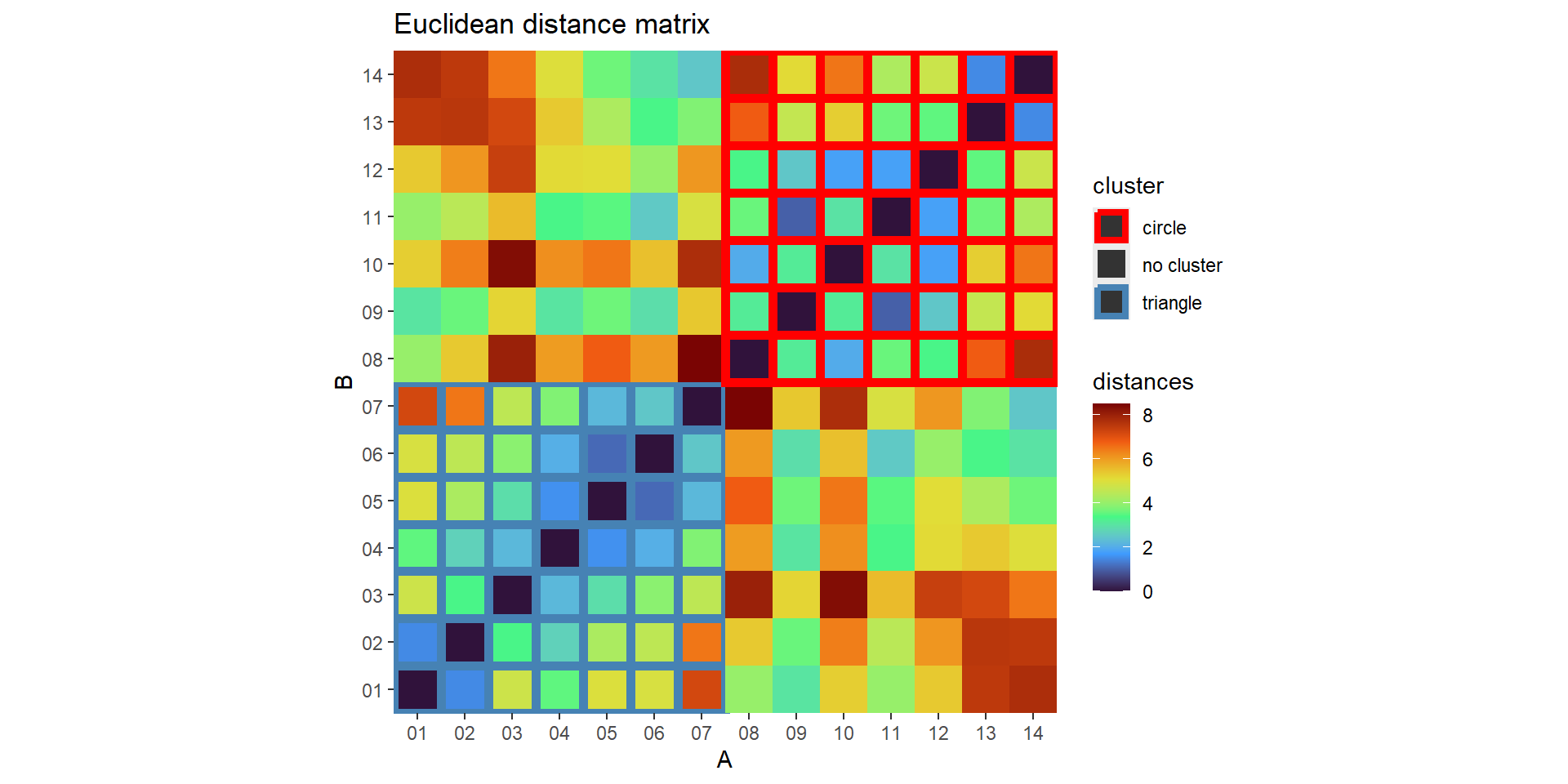

the application

the data

as kNN measure: k = 3

idx feature_01 feature_02 cluster new_data_feature_01 new_data_feature_02 d_dist
1 5.0 6.0 circle 5 5 1.000000
2 4.0 6.0 circle 5 5 1.414214
3 5.5 3.5 triangle 5 5 1.581139
4 3.5 3.0 triangle 5 5 2.500000
5 5.0 2.5 triangle 5 5 2.500000
6 6.0 7.5 circle 5 5 2.692582
7 8.5 5.0 circle 5 5 3.500000
8 8.5 3.5 circle 5 5 3.807887
9 5.0 9.0 circle 5 5 4.000000
10 1.0 5.5 triangle 5 5 4.031129
11 7.0 1.5 triangle 5 5 4.031129
12 1.0 4.0 triangle 5 5 4.123106
13 3.0 9.0 circle 5 5 4.472136
14 2.5 1.0 triangle 5 5 4.716991

as kNN measure: k = 5

idx feature_01 feature_02 cluster new_data_feature_01 new_data_feature_02 d_dist
1 5.0 6.0 circle 5 5 1.000000
2 4.0 6.0 circle 5 5 1.414214
3 5.5 3.5 triangle 5 5 1.581139
4 3.5 3.0 triangle 5 5 2.500000
5 5.0 2.5 triangle 5 5 2.500000
6 6.0 7.5 circle 5 5 2.692582
7 8.5 5.0 circle 5 5 3.500000
8 8.5 3.5 circle 5 5 3.807887
9 5.0 9.0 circle 5 5 4.000000
10 1.0 5.5 triangle 5 5 4.031129
11 7.0 1.5 triangle 5 5 4.031129
12 1.0 4.0 triangle 5 5 4.123106
13 3.0 9.0 circle 5 5 4.472136
14 2.5 1.0 triangle 5 5 4.716991

as kNN measure - in a plot

multi-dimensional clustering or “How many k’s?”

Thank you kaggle

find more info here: (Aeberhard, Coomans, and Vel 1994)

Rows: 178
Columns: 15
$ idx                       <dbl> 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13…
$ Origin                    <dbl> 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1,…
$ Alcohol                   <dbl> 14.23, 13.20, 13.16, 14.37, 13.24, 14.20, 14…
$ Malic_acid                <dbl> 1.71, 1.78, 2.36, 1.95, 2.59, 1.76, 1.87, 2.…
$ Ash                       <dbl> 2.43, 2.14, 2.67, 2.50, 2.87, 2.45, 2.45, 2.…
$ Alkalinity_of_ash         <dbl> 15.6, 11.2, 18.6, 16.8, 21.0, 15.2, 14.6, 17…
$ Magnesium                 <dbl> 127, 100, 101, 113, 118, 112, 96, 121, 97, 9…
$ Total_phenols             <dbl> 2.80, 2.65, 2.80, 3.85, 2.80, 3.27, 2.50, 2.…
$ Flavanoids                <dbl> 3.06, 2.76, 3.24, 3.49, 2.69, 3.39, 2.52, 2.…
$ Nonflavonoids_phenols     <dbl> 0.28, 0.26, 0.30, 0.24, 0.39, 0.34, 0.30, 0.…
$ Proanthocyanins           <dbl> 2.29, 1.28, 2.81, 2.18, 1.82, 1.97, 1.98, 1.…
$ Color_intensity           <dbl> 5.64, 4.38, 5.68, 7.80, 4.32, 6.75, 5.25, 5.…
$ Hue                       <dbl> 1.04, 1.05, 1.03, 0.86, 1.04, 1.05, 1.02, 1.…
$ OD280_OD315_diluted_wines <dbl> 3.92, 3.40, 3.17, 3.45, 2.93, 2.85, 3.58, 3.…
$ Proline                   <dbl> 1065, 1050, 1185, 1480, 735, 1450, 1290, 129…

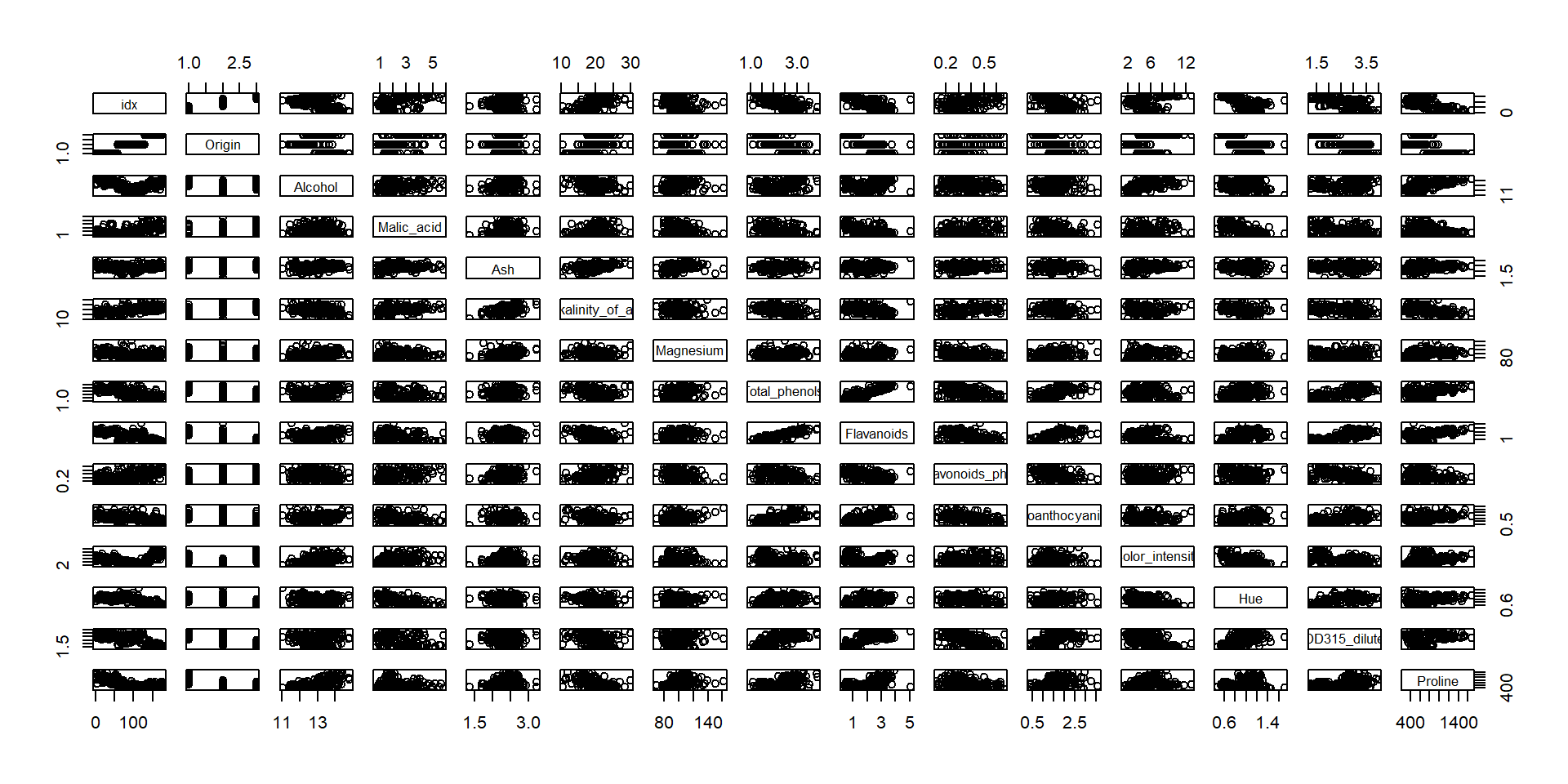

quick eda

some preprocessing

  • same proportions?

   1    2    3
0.33 0.40 0.27
  • NA’s?
      idx         Origin    Alcohol        Malic_acid         Ash
 Min.   :  0.00   1:59   Min.   :11.03   Min.   :0.740   Min.   :1.360
 1st Qu.: 44.25   2:71   1st Qu.:12.36   1st Qu.:1.603   1st Qu.:2.210
 Median : 88.50   3:48   Median :13.05   Median :1.865   Median :2.360
 Mean   : 88.50          Mean   :13.00   Mean   :2.336   Mean   :2.367
 3rd Qu.:132.75          3rd Qu.:13.68   3rd Qu.:3.083   3rd Qu.:2.558
 Max.   :177.00          Max.   :14.83   Max.   :5.800   Max.   :3.230
 Alkalinity_of_ash   Magnesium      Total_phenols     Flavanoids
 Min.   :10.60     Min.   : 70.00   Min.   :0.980   Min.   :0.340
 1st Qu.:17.20     1st Qu.: 88.00   1st Qu.:1.742   1st Qu.:1.205
 Median :19.50     Median : 98.00   Median :2.355   Median :2.135
 Mean   :19.49     Mean   : 99.74   Mean   :2.295   Mean   :2.029
 3rd Qu.:21.50     3rd Qu.:107.00   3rd Qu.:2.800   3rd Qu.:2.875
 Max.   :30.00     Max.   :162.00   Max.   :3.880   Max.   :5.080
 Nonflavonoids_phenols Proanthocyanins Color_intensity       Hue
 Min.   :0.1300        Min.   :0.410   Min.   : 1.280   Min.   :0.4800
 1st Qu.:0.2700        1st Qu.:1.250   1st Qu.: 3.220   1st Qu.:0.7825
 Median :0.3400        Median :1.555   Median : 4.690   Median :0.9650
 Mean   :0.3619        Mean   :1.591   Mean   : 5.058   Mean   :0.9574
 3rd Qu.:0.4375        3rd Qu.:1.950   3rd Qu.: 6.200   3rd Qu.:1.1200
 Max.   :0.6600        Max.   :3.580   Max.   :13.000   Max.   :1.7100
 OD280_OD315_diluted_wines    Proline
 Min.   :1.270             Min.   : 278.0
 1st Qu.:1.938             1st Qu.: 500.5
 Median :2.780             Median : 673.5
 Mean   :2.612             Mean   : 746.9
 3rd Qu.:3.170             3rd Qu.: 985.0
 Max.   :4.000             Max.   :1680.0

splitting the data

wd2 <- wine_data |>
  janitor::clean_names() |>
  select(-idx)

param_split_wd2 <- createDataPartition(
  wd2$origin,
  p = 0.75,
  list = FALSE)

train_wd2 <- wd2[param_split_wd2, ]
test_wd2 <- wd2[-param_split_wd2, ]

controlling the training

trnctrl_wd2 <- trainControl(
  method = "repeatedcv",
  number = 10,
  repeats = 3,
  savePredictions = TRUE)
  • What is repeatedcv?
    • repeated cross validation
  • What is cross validation?

Cross Validation - why?

Cross Validation - how?

Cross Validation - what?

  • k-Fold Cross-Validation: The dataset is divided into k subsets. The model is trained on \(k - 1\) subsets and tested on the remaining one. This process is repeated \(k\) times.

  • Leave-One-Out Cross-Validation (LOOCV): A special case of k-fold cross-validation where \(k\) is equal to the number of data points. Each data point is used as a test set exactly once, and the model is trained on all remaining data points.

  • Stratified k-Fold Cross-Validation: Similar to k-fold but ensures that each fold has a representative proportion of classes, useful in classification problems with imbalanced classes.

  • Repeated k-Fold Cross-Validation: The k-fold cross-validation process is repeated multiple times with different random splits of the data to ensure more robust performance estimates.

Cross Validation - advantages

  • Model Evaluation: Provides a more accurate estimate of model performance on unseen data compared to a single train-test split.

  • Bias-Variance Trade-Off: Helps in tuning model hyperparameters by providing insights into the model’s bias and variance.

  • Data Utilization: Maximizes the use of the available data for both training and testing, leading to better model performance assessment.

modeling

model_knn_wd2 <- train(origin ~.,
                       data = train_wd2,
                       method = "knn",
                       trControl = trnctrl_wd2,
                       preProcess = c("center", "scale"),
                       tuneLength = 75)

model_knn_wd2
k-Nearest Neighbors

135 samples
 13 predictor
  3 classes: '1', '2', '3'

Pre-processing: centered (13), scaled (13)
Resampling: Cross-Validated (10 fold, repeated 3 times)
Summary of sample sizes: 121, 121, 123, 121, 122, 122, ...
Resampling results across tuning parameters:

  k    Accuracy   Kappa
    5  0.9627350  0.9435405955
    7  0.9658547  0.9488683148
    9  0.9510195  0.9263685921
   11  0.9482112  0.9222770631
   13  0.9480525  0.9218332046
   15  0.9527595  0.9286000402
   17  0.9482112  0.9216357391
   19  0.9672833  0.9507486744
   21  0.9726252  0.9587979164
   23  0.9676801  0.9513112977
   25  0.9676801  0.9514479053
   27  0.9726252  0.9589066965
   29  0.9726252  0.9589066965
   31  0.9607204  0.9410389312
   33  0.9579731  0.9371302450
   35  0.9603541  0.9407199886
   37  0.9603541  0.9409148550
   39  0.9629182  0.9446168637
   41  0.9554090  0.9334944976
   43  0.9554090  0.9334944976
   45  0.9528449  0.9296254500
   47  0.9530281  0.9299047540
   49  0.9506227  0.9262978330
   51  0.9531868  0.9300235825
   53  0.9555678  0.9336133261
   55  0.9533700  0.9303905297
   57  0.9484249  0.9227884404
   59  0.9484249  0.9227319159
   61  0.9409158  0.9112077294
   63  0.9432967  0.9148531280
   65  0.9436874  0.9153021186
   67  0.9478938  0.9212219550
   69  0.9304335  0.8937513600
   71  0.9051587  0.8539281084
   73  0.8755922  0.8071842412
   75  0.8561783  0.7769983471
   77  0.8387241  0.7483984529
   79  0.8196276  0.7167722826
   81  0.8045482  0.6921510752
   83  0.7768926  0.6480621283
   85  0.7652808  0.6277014248
   87  0.7224664  0.5586180833
   89  0.7059646  0.5299553754
   91  0.6821062  0.4897319405
   93  0.6377534  0.4157381473
   95  0.5926740  0.3399541754
   97  0.5726862  0.3072850387
   99  0.5364774  0.2467507459
  101  0.4948230  0.1741694841
  103  0.4666117  0.1250441867
  105  0.4346581  0.0662702132
  107  0.4166484  0.0340202007
  109  0.4071245  0.0160962082
  111  0.3999817  0.0016865694
  113  0.3999817  0.0013691090
  115  0.3999817  0.0003921569
  117  0.3999817  0.0000000000
  119  0.3999817  0.0000000000
  121  0.3999817  0.0000000000
  123  0.3999817  0.0000000000
  125  0.3999817  0.0000000000
  127  0.3999817  0.0000000000
  129  0.3999817  0.0000000000
  131  0.3999817  0.0000000000
  133  0.3999817  0.0000000000
  135  0.3999817  0.0000000000
  137  0.3999817  0.0000000000
  139  0.3999817  0.0000000000
  141  0.3999817  0.0000000000
  143  0.3999817  0.0000000000
  145  0.3999817  0.0000000000
  147  0.3999817  0.0000000000
  149  0.3999817  0.0000000000
  151  0.3999817  0.0000000000
  153  0.3999817  0.0000000000

Accuracy was used to select the optimal model using the largest value.
The final value used for the model was k = 29.

modeling diagnostics

PREDICTION

All models are wrong,

some are useful.

prediction_knn_wd2 <- predict(model_knn_wd2, newdata = test_wd2)

confusionMatrix(prediction_knn_wd2, reference = test_wd2$origin)
Confusion Matrix and Statistics

          Reference
Prediction  1  2  3
         1 14  1  0
         2  0 16  0
         3  0  0 12

Overall Statistics

               Accuracy : 0.9767
                 95% CI : (0.8771, 0.9994)
    No Information Rate : 0.3953
    P-Value [Acc > NIR] : 3.124e-16

                  Kappa : 0.9648

 Mcnemar's Test P-Value : NA

Statistics by Class:

                     Class: 1 Class: 2 Class: 3
Sensitivity            1.0000   0.9412   1.0000
Specificity            0.9655   1.0000   1.0000
Pos Pred Value         0.9333   1.0000   1.0000
Neg Pred Value         1.0000   0.9630   1.0000
Prevalence             0.3256   0.3953   0.2791
Detection Rate         0.3256   0.3721   0.2791
Detection Prevalence   0.3488   0.3721   0.2791
Balanced Accuracy      0.9828   0.9706   1.0000
pred_out <- test_wd2 |>
  add_column(pred.origin = prediction_knn_wd2)

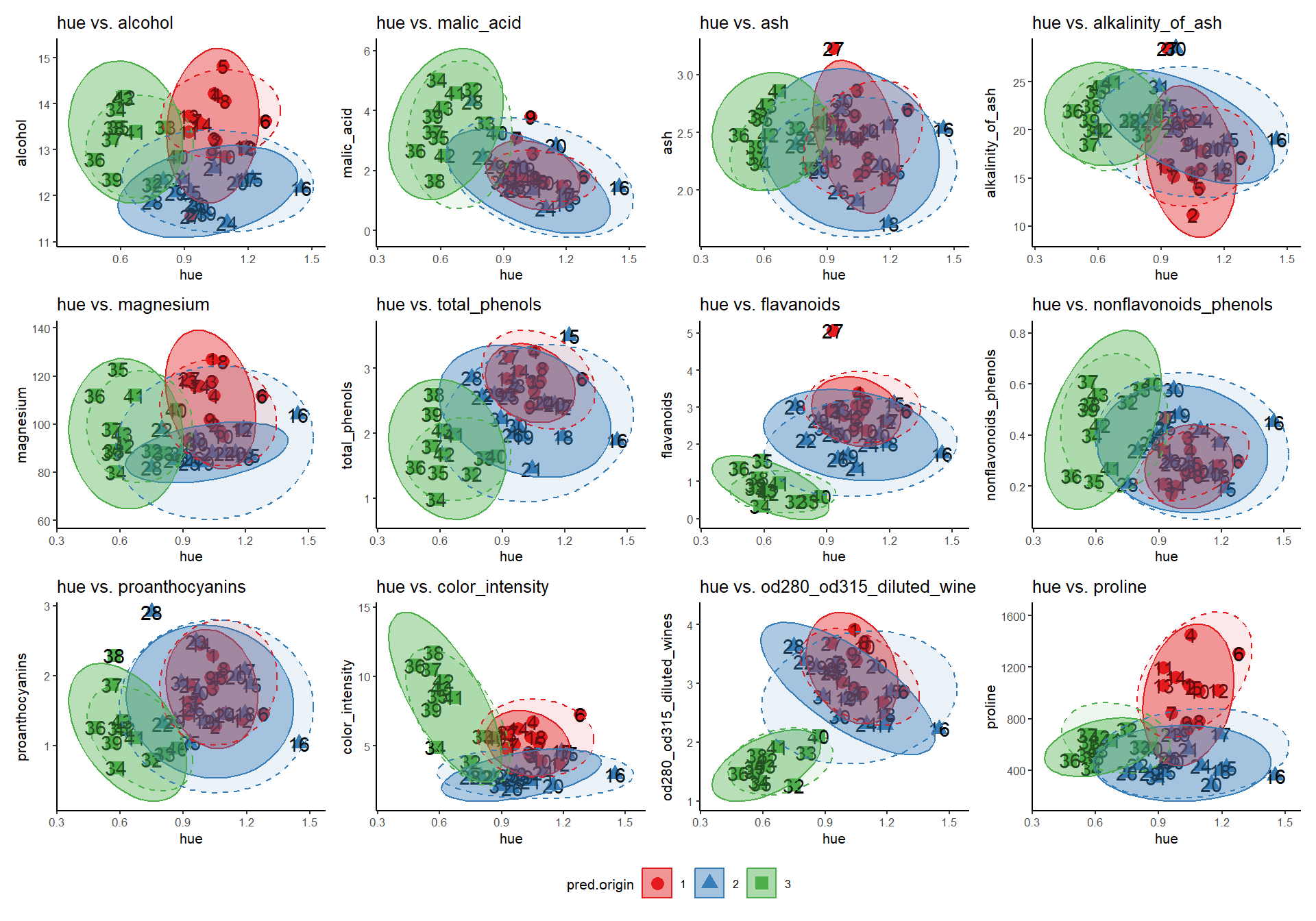

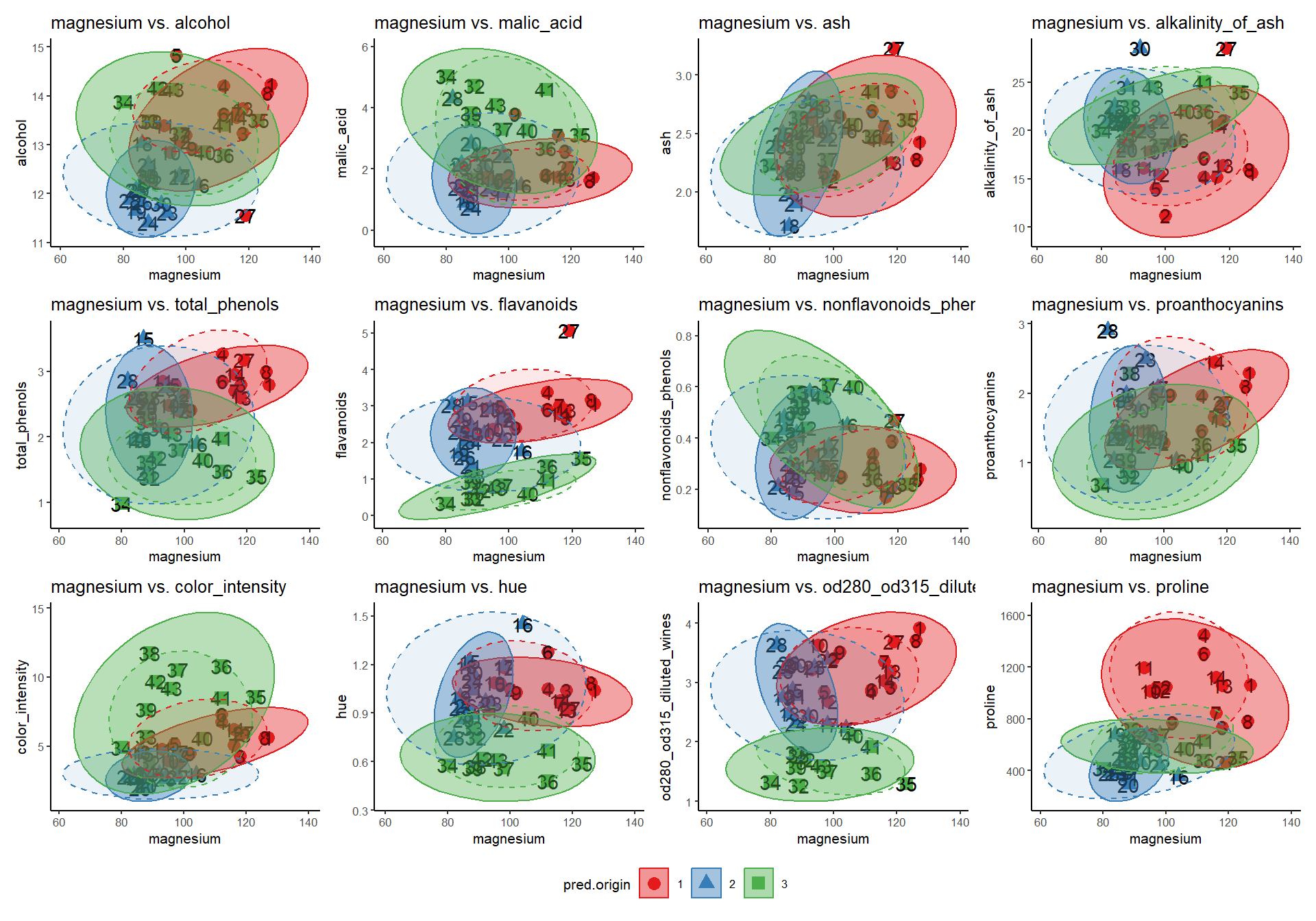

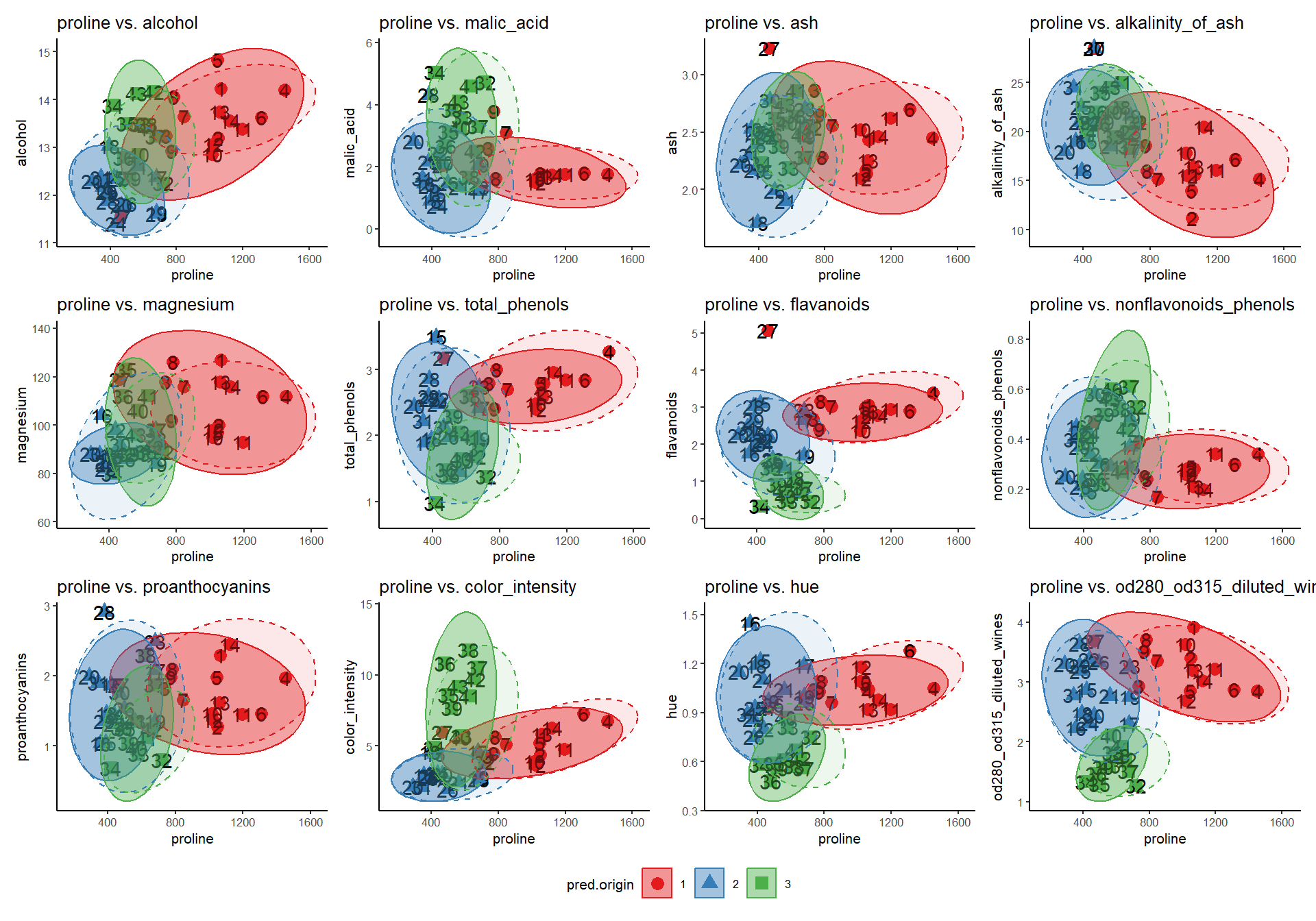

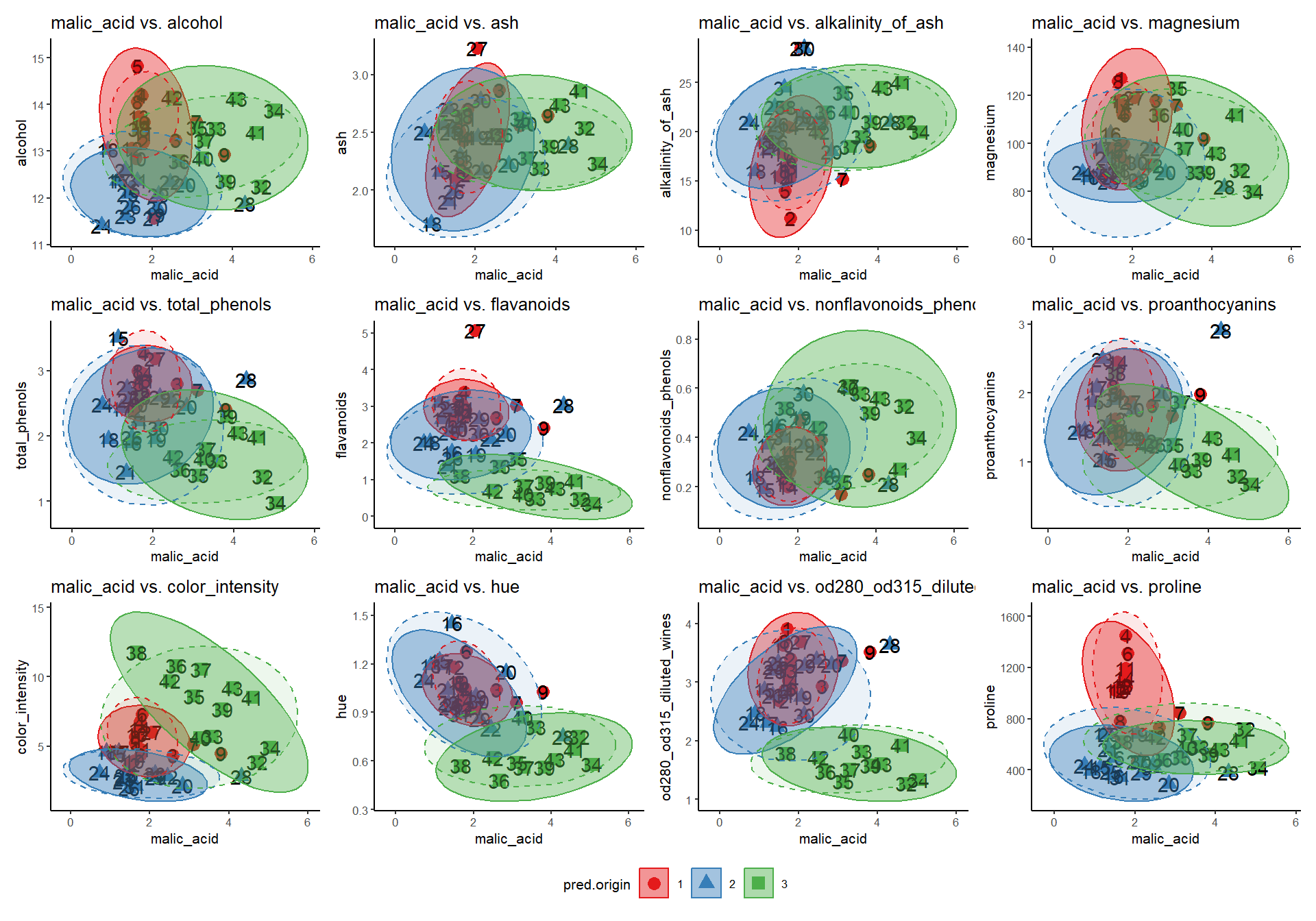

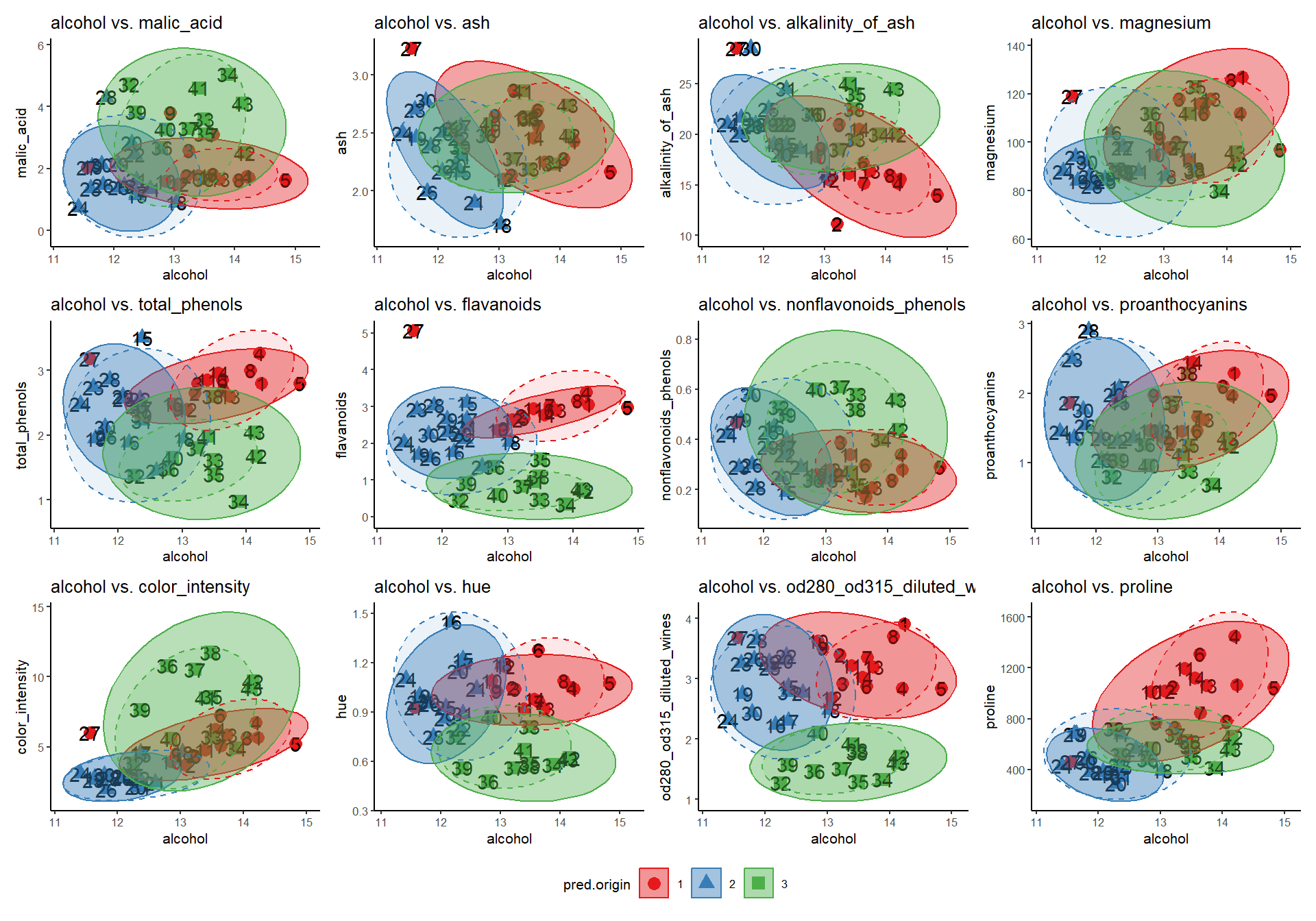

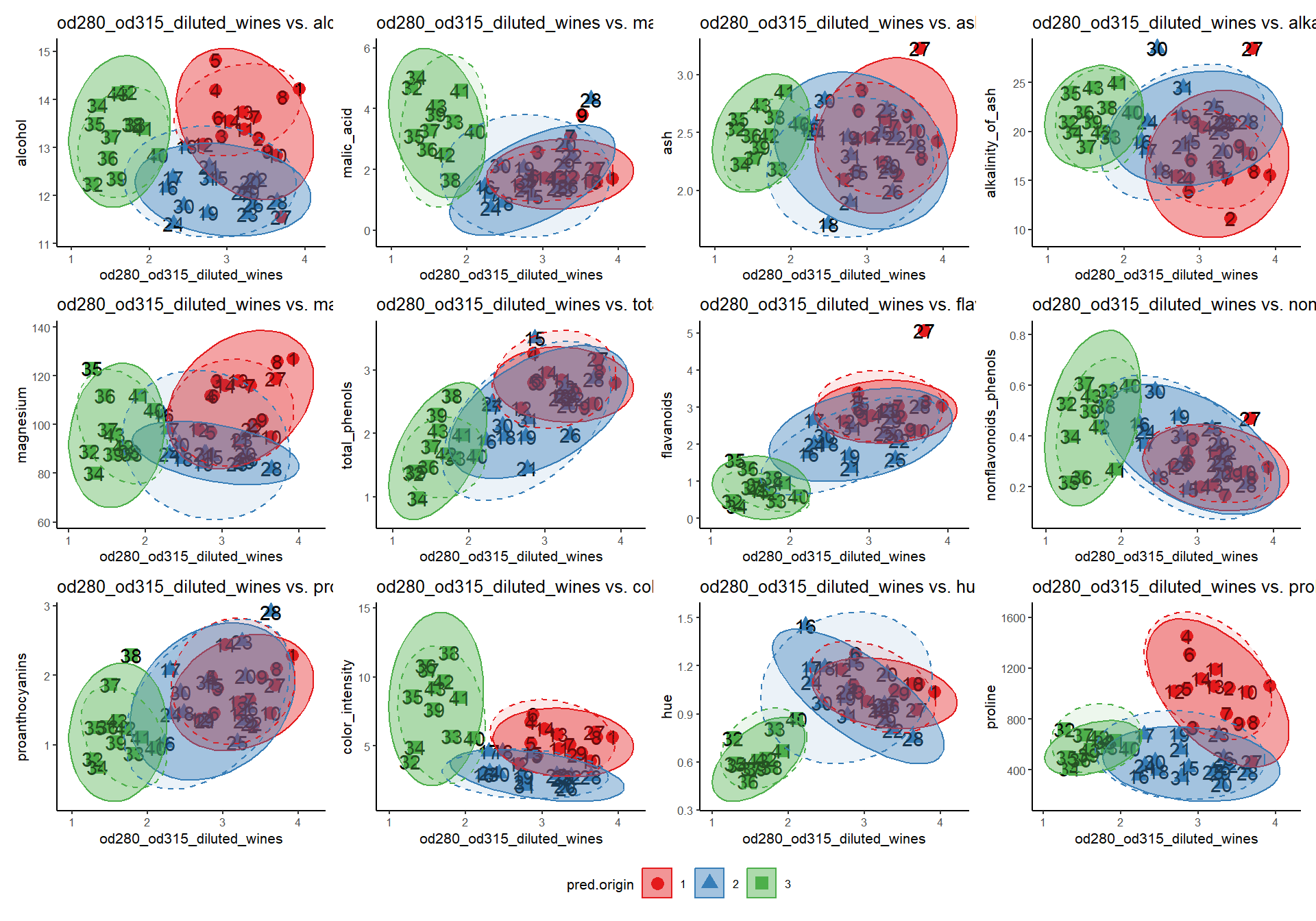

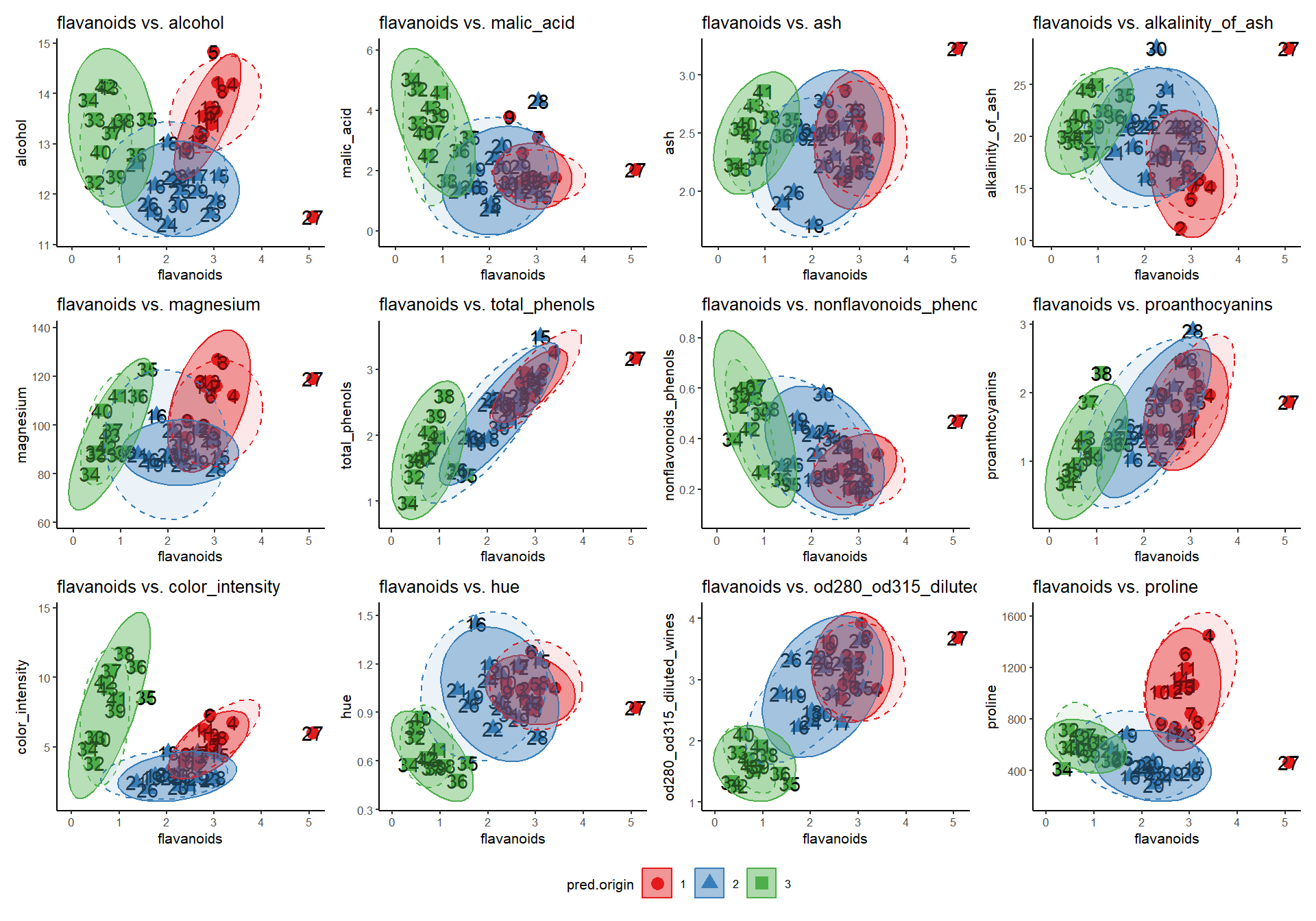

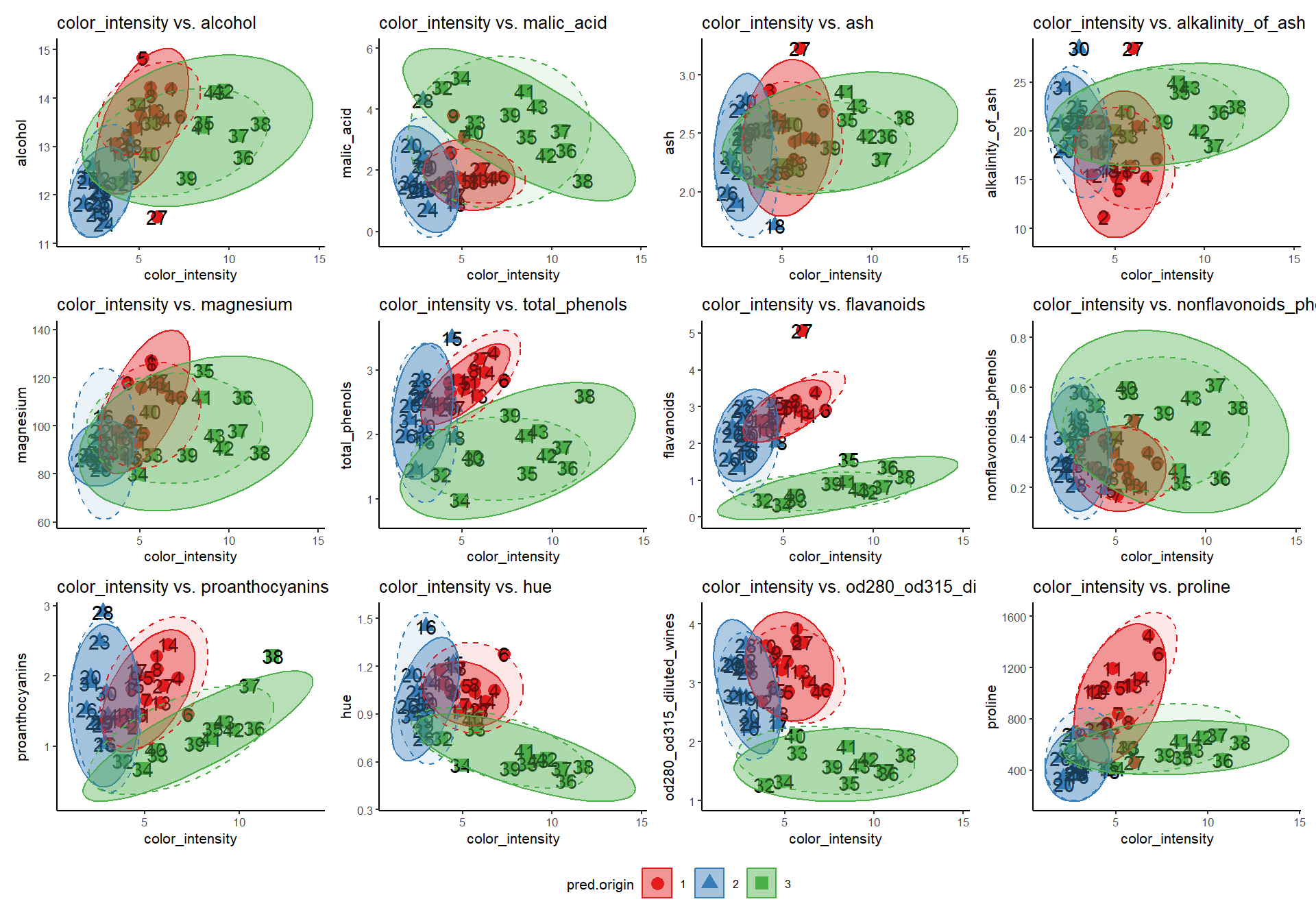

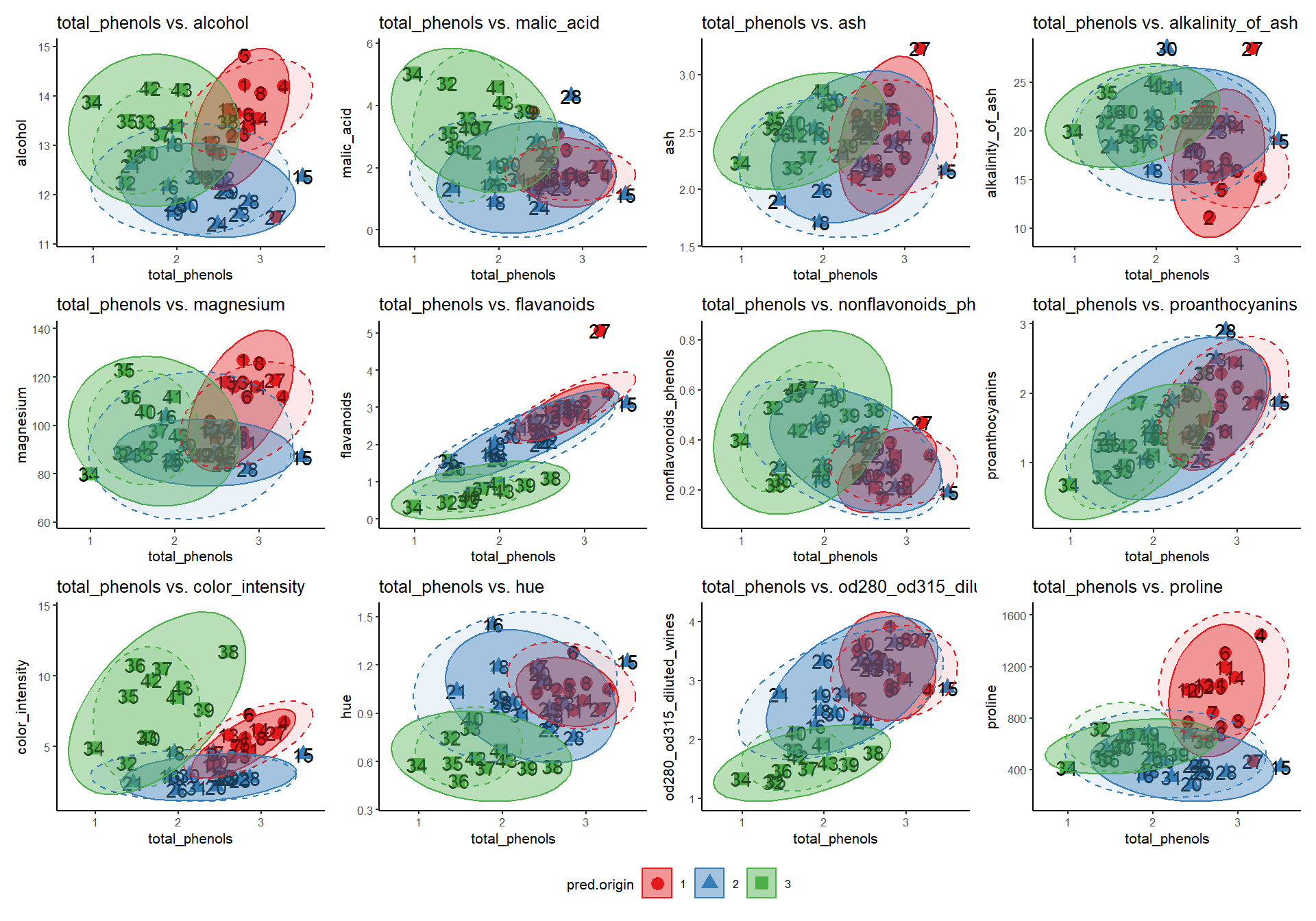

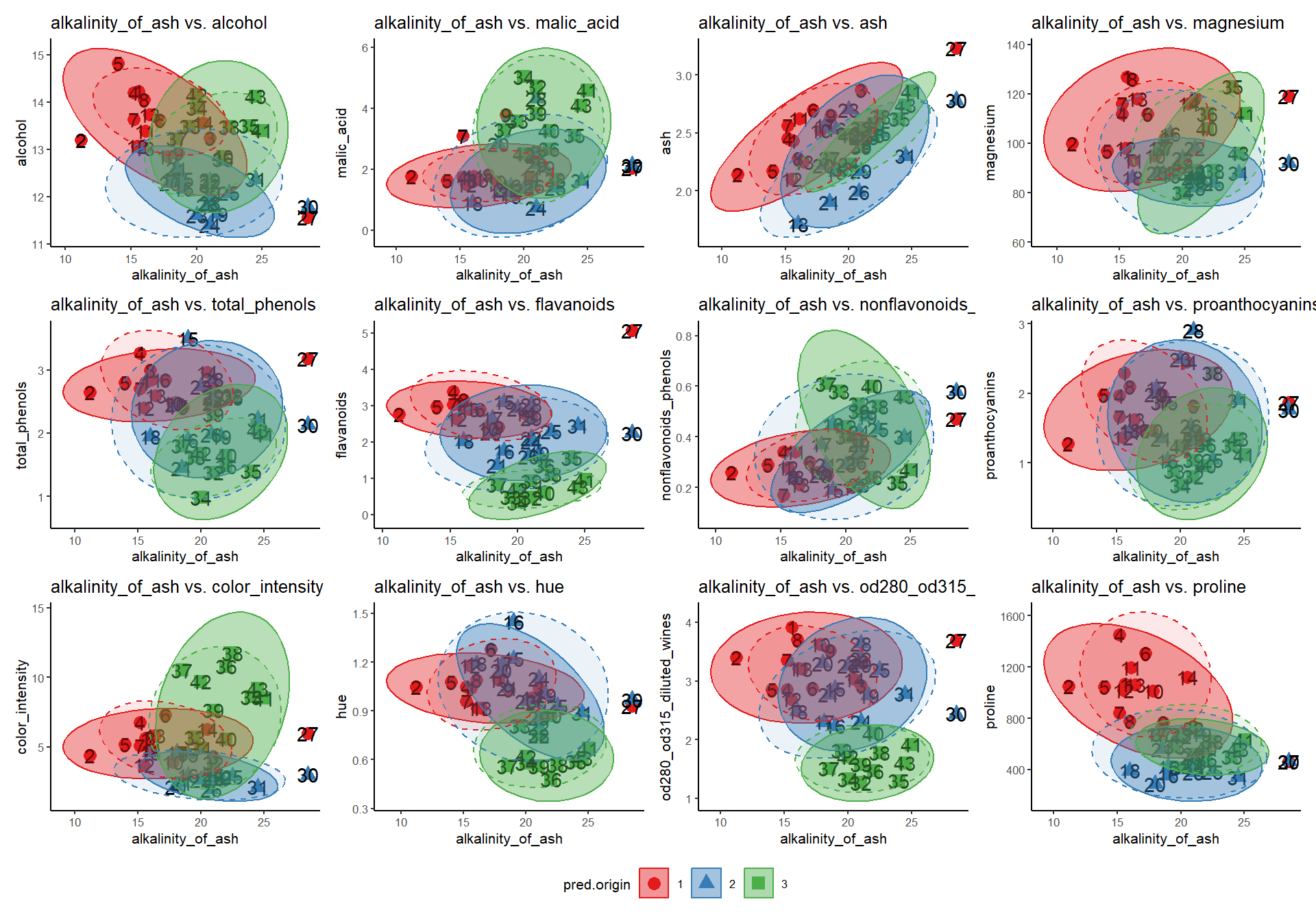

many plots - but how?

  • First: define plotting function that takes varnames as input
plt_clust <- function(
    dataset,
    varname1,
    varname2,
    train_data){

  varset <- dataset |>
    select({{varname1}},{{varname2}}) |>
    colnames()

  ds_plt <- dataset |>
    rowid_to_column(
      var = "idx"
    )

  p <- ds_plt |>
    ggplot(
      aes(
        x = {{varname1}},
        y = {{varname2}}
      )
    )+
    geom_point(
      aes(
        shape = pred.origin,
        color = pred.origin,
        fill = pred.origin
      ),
      size =3)+
    geom_text(
      aes(
        label = idx
      )
    )+
    labs(
      title = paste0(varset[1]," vs. ",varset[2])
    )+
  stat_ellipse(
    aes(
        color = pred.origin,
        fill = pred.origin
      ),
    type = "t",geom = "polygon",alpha = 0.4)+
  stat_ellipse(
    data = train_data,
    aes(
        color = origin,
        fill = origin
      ),
    linetype = "dashed",
    type = "t",
    geom = "polygon",
    alpha = 0.1)+
  scale_fill_brewer(palette = "Set1")+
  scale_color_brewer(palette = "Set1")+
  theme_classic(base_size = 15)+
  theme(
    legend.position = "bottom"
  )

  return(p)
}

# plt_clust(pred_out,alcohol,malic_acid,train_wd2)
  • Second: compute all possible varname combinations, without predictor, omit duplicates
colnames_vec <- colnames(pred_out[,3:ncol(pred_out)-1])

colnames_combinations <- expand_grid(
  varname1 = colnames_vec,
  varname2 = colnames_vec
) |>
  mutate(
    rem_col =
      case_when(
        varname1 == varname2 ~ FALSE,
        TRUE ~ TRUE
      )
  ) |>
  filter(
    rem_col
  ) |>
  select(-rem_col)
  • Third: map over the rows, create anonymous function
plt_out <- map(
  seq(1:nrow(colnames_combinations)),
  function(x) plt_clust(pred_out,
                        !!sym(colnames_combinations[x,1] |>
                                pull(varname1)),
                        !!sym(colnames_combinations[x,2] |>
                                pull(varname2)
                              ),
                        train_wd2
                        )
  )
  • Fourth: do the plots, first just one, then all
[[1]]

The curse of dimensionality

  • Increased Volume:
    • Space volume grows exponentially with dimensions.
    • Data points become sparse, complicating pattern recognition.
  • Distance Measures:
    • Distances between data points become similar.
    • Distance-based algorithms (e.g., k-nearest neighbors) lose effectiveness.
  • Data Sparsity:
    • Data becomes sparser in high dimensions.
    • Higher risk of overfitting, requiring more data for reliability.
  • Computational Complexity:
    • Processing high-dimensional data is computationally expensive.
    • Algorithm complexity often increases exponentially with dimensions.
  • Feature Selection and Extraction:
    • Methods like PCA and t-SNE reduce dimensions while retaining key information.
  • Visualization:
    • Visualizing high-dimensional data is difficult.
    • Projections to lower dimensions are necessary for interpretation.
  • Overfitting:
    • High-dimensional data increases the risk of overfitting.
    • Regularization and cross-validation help mitigate this.

Mitigation Strategies

  • Dimensionality Reduction: Techniques such as PCA and autoencoders.
  • Feature Selection: Choosing the most relevant features.
  • Regularization: L1 and L2 regularization to prevent overfitting.
  • Domain Knowledge: Using expertise to identify important features.

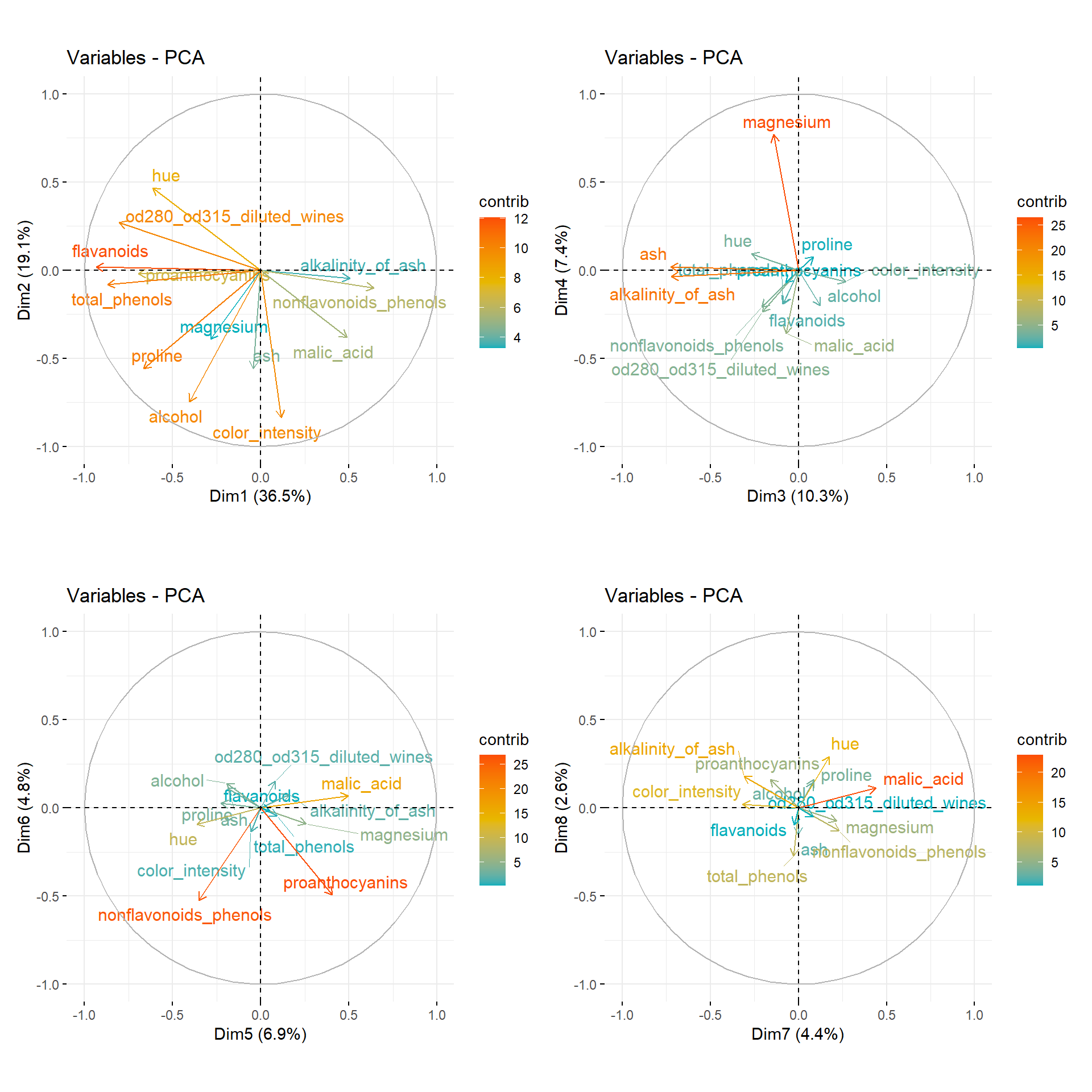

PCA

knn summary

Pros:

  • Non-parametric: Does not assume a fixed form for the mapping function, allowing for flexibility in modeling complex relationships.
  • Adaptable: Can easily adapt to new data by simply storing additional instances, making it suitable for dynamic environments.
  • Interpretable: Easy to interpret results as the output is based on the majority class among neighbors or average of nearest points.

Cons:

  • Memory Intensive: Requires storing the entire training dataset, which can be problematic for very large datasets.
  • Feature Scaling: Performance depends heavily on the scale of the features, often necessitating normalization or standardization.
  • Imbalanced Data: Struggles with imbalanced datasets where the minority class may be overshadowed by the majority class due to the simple majority voting mechanism.

References

Aeberhard, Stefan, Danny Coomans, and Olivier de Vel. 1994. “Comparative Analysis of Statistical Pattern Recognition Methods in High Dimensional Settings.” Pattern Recognition 27 (8): 1065–77. https://doi.org/10.1016/0031-3203(94)90145-7.
